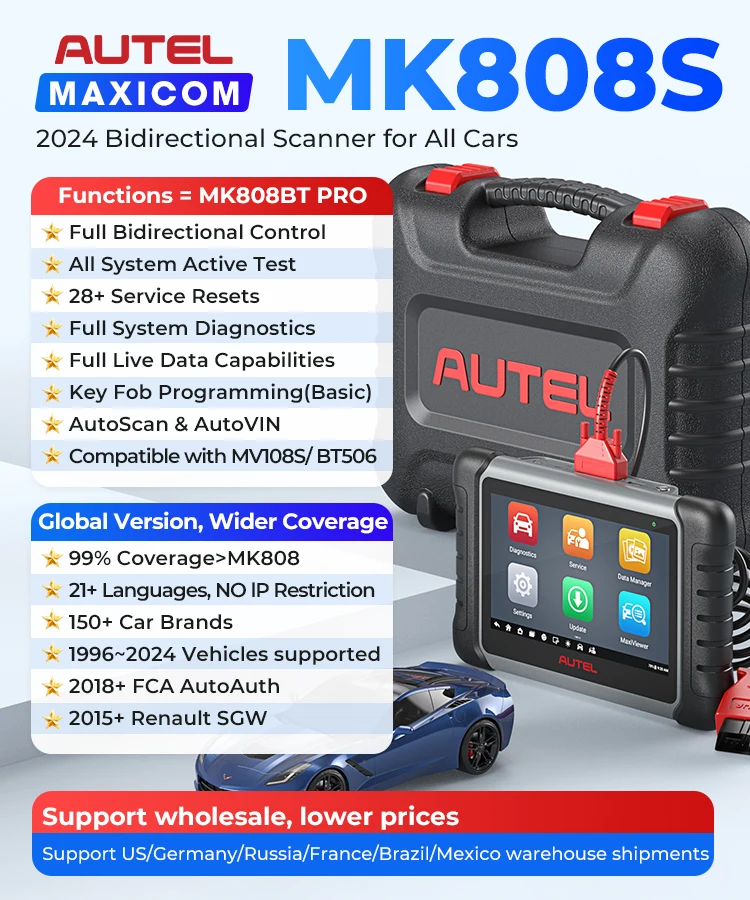

Autel maxicom MK808S

Bidirectional Tool as MK808BT Pro MX808S M808Z, Function as MaxiCheck MX900, 28+ Service, Active Test, All System Diagnose, Injector Coding, FCA Autoauth Android 11

Brand:

AUTEL

Spu:

mk808s

Introduction

Products Description

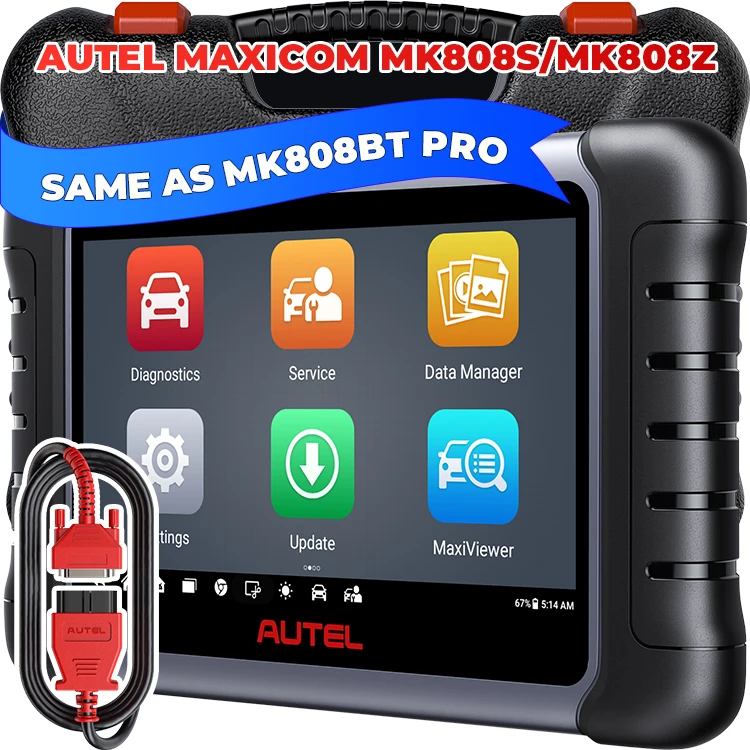

MaxiCOM MK808S/MK808Z

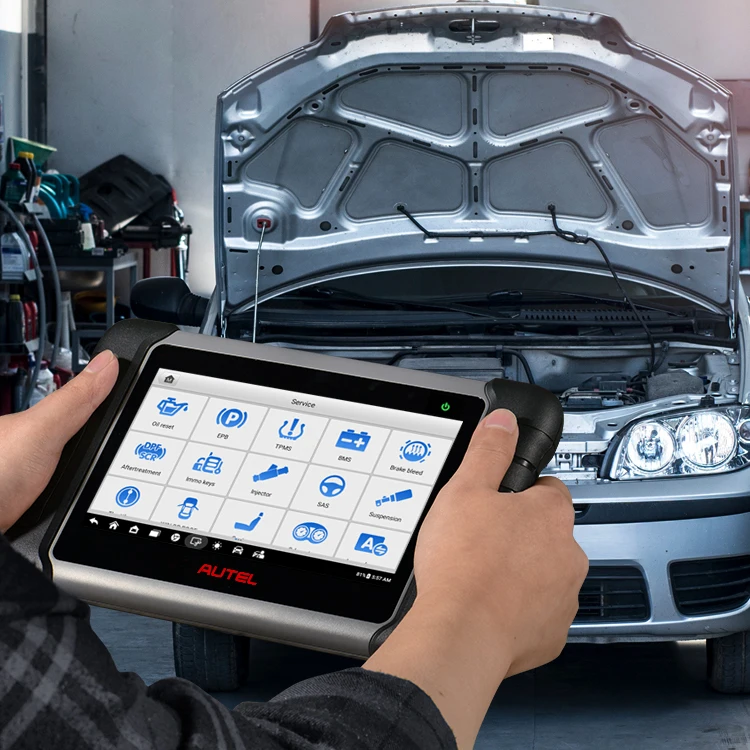

When it comes to ultra-portability, MaxiCOM MK808S/MK808Z is your perfect companion. Installed with a fast quad-core processor,MK808S/MK808Z offers maximum convenience and swift diagnosis. The intuitive user screen makes using the device effortless through
a 7-inch LCD touchscreen that displays at 1024 x 600 quality. Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MK808S provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), DPF (Diesel Particulate Filter), IMMO, and TPMS (Tire Pressure Monitoring System).

Operating System	Android 11
Processor	Cortex-A55 quad-core processor (1.8GHz)
Memory	4GB RAM & 64GB On-board Memory
Display	7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity	Wi-Fi（802.11a/b/g/n/ac）
		USB 2.0，Mini USB 2.0
		SD Card (Support up to 64GB)
Sensors	Light sensor for brightness auto adjust
Audio Input/Output	Input: N/A
Audio Input/Output		Output: Beep
Power and Battery	3.7 V/5000mAh lithium-polymer battery
Power and Battery		Charges via 5 VDC power supply
Input Voltage	5 V/1.5 A
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)	270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
Weight	885 g (2.31 lb.)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISo11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6
