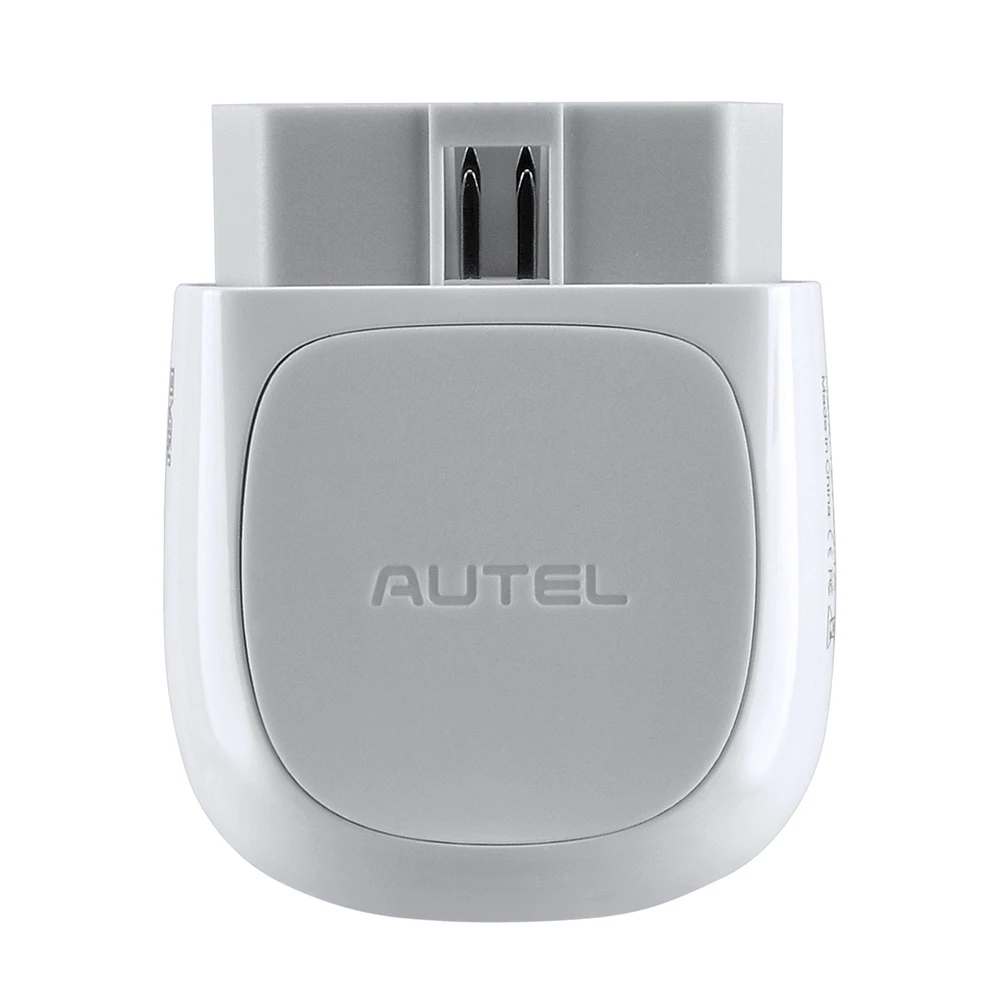

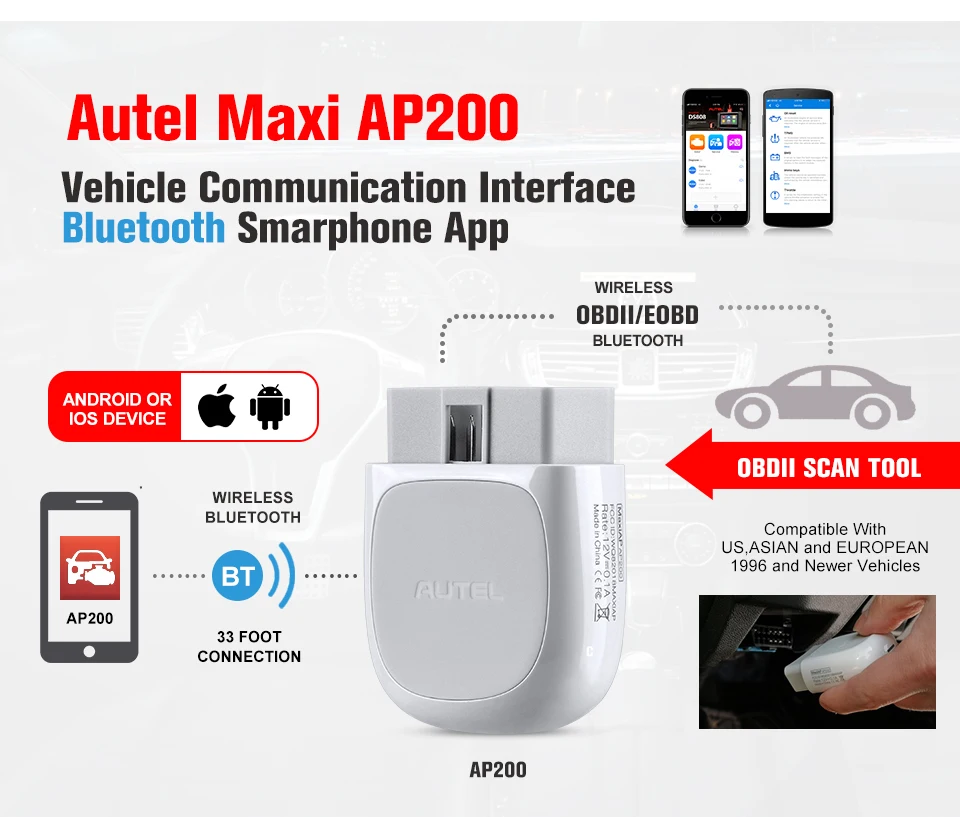

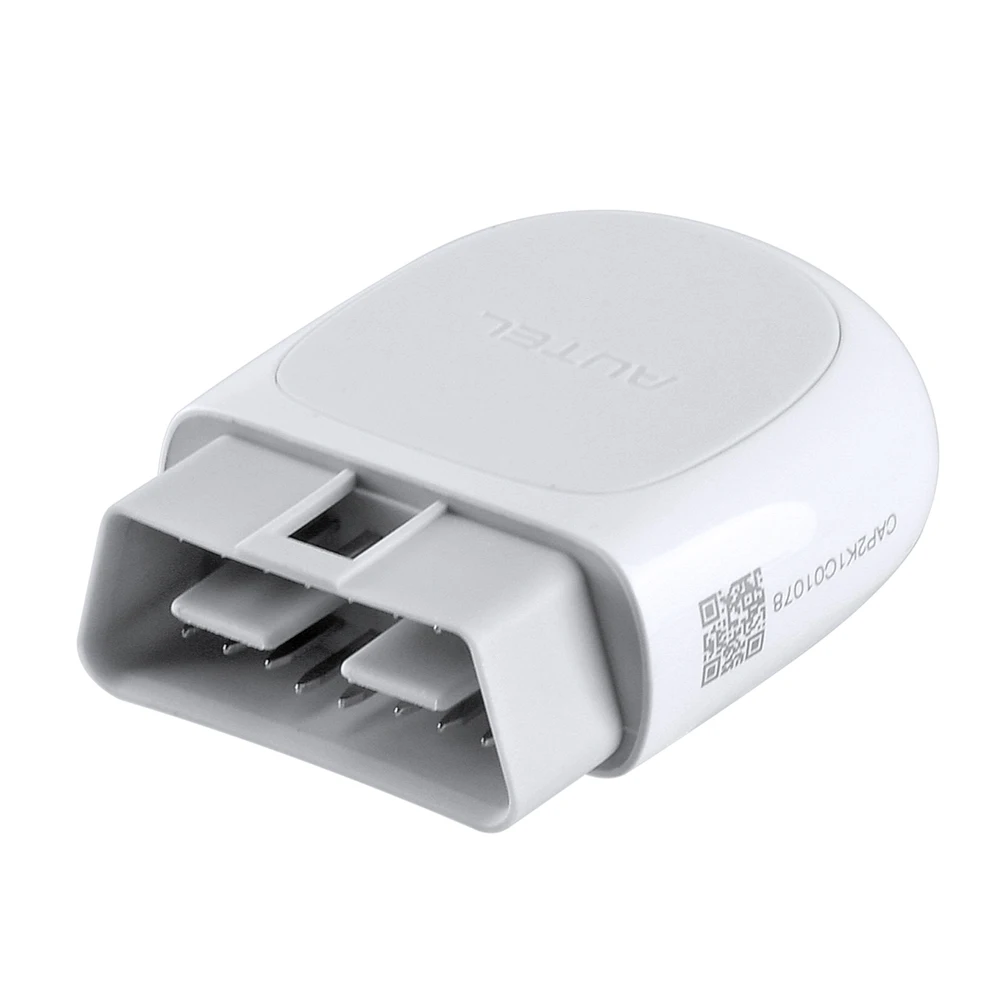

The Autel MaxiAP AP200 OBDII Scanner is a cutting-edge diagnostic tool that leverages Bluetooth wireless technology for seamless connectivity. Equipped with full system diagnosis capabilities, it enables comprehensive analysis of a vehicle's engine, transmission, ABS, airbag, and other essential systems. With its user-friendly interface and intuitive software, mechanics and DIY enthusiasts can effortlessly read and clear fault codes, view live data, and perform advanced diagnostic functions. Suitable for a wide range of car makes and models, the Autel MaxiAP AP200 is an indispensable addition to any auto repair shop or garage.
Features of Autel AP200:
1.SUPERIOR SYSTEMS DIAGNOSES
(1)Read DTCs from the vehicle’s control systems to locate problem areas, and offer solutions;
(2)Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
(3)Live data shows each parameter item displayed in analog, text, waveform graph modes etc.;
(4)The active test used to access vehicle-specific subsystem and component tests.
2.ADVANCED RESET SERVICES:
Oil Reset –Perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the
vehicle driving conditions and climate.
EPB Reset –Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system,
setting brakes after disc or pad replacement, etc.
BMS Reset –Evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate
the rest state of the vehicle.
SAS Reset –perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the
straight-ahead position in the sensor EEPROM.
TPMS Reset –quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS replacement and sensor test.
IMMO Service - Disable the lost vehicle keys and program the replacement key fob.
DPF Regeneration –Manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control
unit.
3.COMPLETE OBD2 FUNCTIONS:
(1)Read extensive current, pending and permanent codes in OBD system quickly
(2)Clear detected fault codes and turn off the Check Engine Light efficiently
(3)View graphical live data of vehicle’s computer module(s) for easy analyses
(4)View the vehicle’s operating parameters at the moment a DTC is detected
(5)Read I/M readiness status to have a vehicle inspected for state emissions compliance
(6)Perform O2 sensor test to check fuel efficiency and vehicle emissions
(7)Read the results of on-board diagnostic monitoring tests for specific components/systems
(8)Retrieve the vehicle information of VIN, CINs, and CVNs completely
(9)Perform the component Test by allowing initiating a leak test for the vehicle’s EVAP system
4.THE OPERATING PROCEDURES:
1. Download and install the app-MaxiAP200 in Google Play or App Store to your device;
2. Register and log in the MaxiAP200 APP;
3. Get one free car software through Mall after binding V_C_I for the first time;
4. Plug the MaxiAP200 tool into the vehicle’s Data Link Connector (DLC);
5. Turn on the vehicle ignition while turn the engine off;
6. Tap Me/Setting button of your device to pair the MaxiAP AP200 with your device;
7. Start to diagnose your car.
